CJ750 toolbox |
Bart
Sanders improves clutch cable support and adjustment
components |
 |
"Fed up with the flimsy way the clutch
cable is adjusted and supported, I found a better
way." |
 |

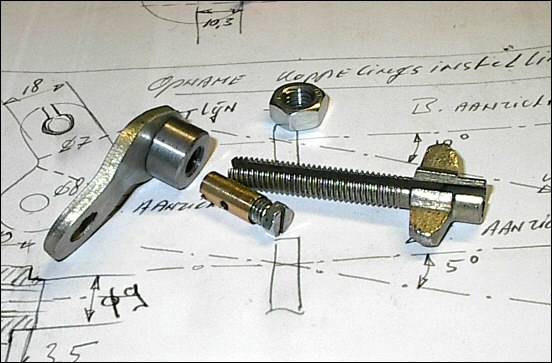

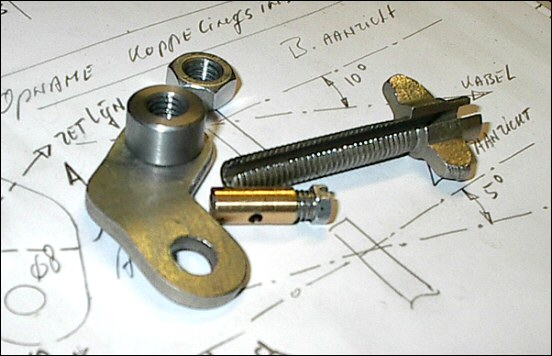

"Using available parts plus one extra
part made on a lathe, I am satisfied." |
 |
"This is a heavy-duty cable adjustment
using a brake lever adjustment screw with an M8
thread." |
 |

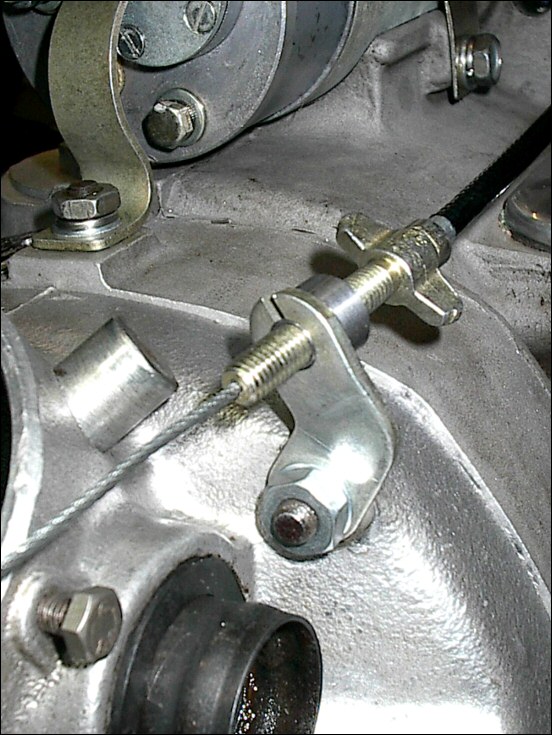

"By tilting the plate that holds the
cable support/adjustment, I can have a straight line
between the clutch lever and cable pickup. The result is
smooth operation and less wear." |
 |
 |
 |
 |
 |
 |
