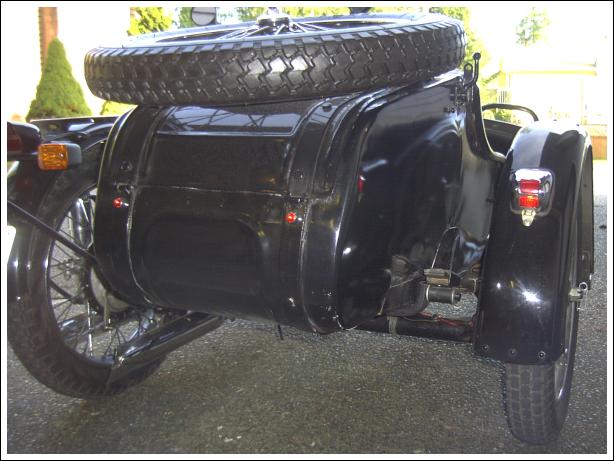

"The Chairman" is Stephen
Gaulin's M1 Super. He's made some improvements
on the bike, particularly with the lighting. Here we see
a pair of JC Whitney button lights in place of the bolts
at the tops of the lower hinge straps for the side car
trunk lid. |
 |
I like the subtlety of these lights. One
could paint the lamp bodies to match their bike for an
even more subtle effect. |
 |

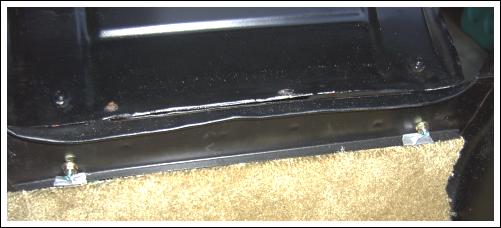

This is how they look from the back of the
panel. Since the sidecar is insulated from the bike,
Stephen had to run a ground wire to the frame. Tape holds
the wiring in place. The carpet on the trunk floor is
there to reduce noise. |
 |
Clicking on the image will take you to this
item in the Whitney catalog. |
 |

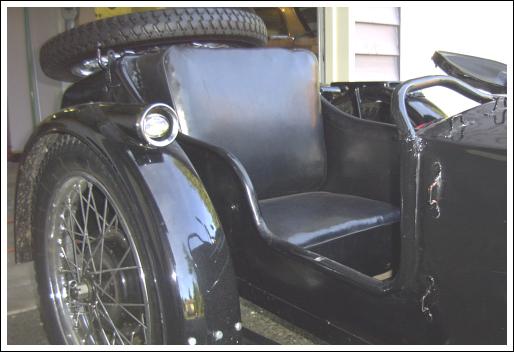

Here's an upgrade he did on the sidecar
fender running light. Stephen plans to fill the space
between the light and the housing using the old CJ
concave reflector that was part of the original fixture.
The light is made by Pilot and cost $26 at GI Joe's. |
 |

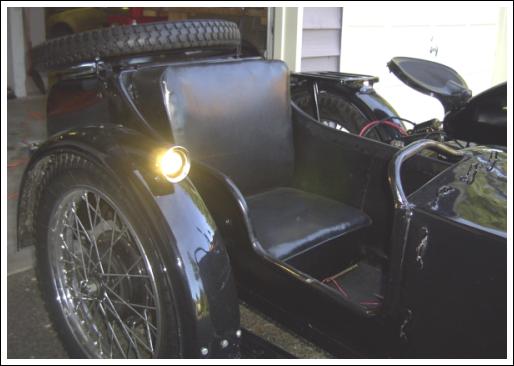

Here we see it illuminated. |
 |

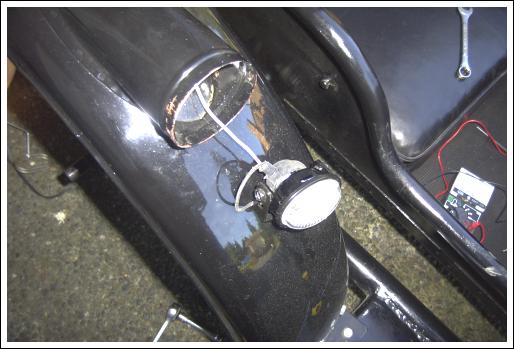

The new unit is quite compact. Here we see
it outside of the housing. |
 |

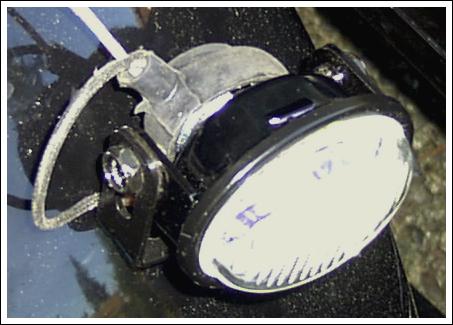

A detail shot of the fixture. It's very
bright, enough to illuminate the roadway. |
 |
 |
 |
 |
 |
 |
