CJ750 toolbox Static wheel balancer by Bill
Taylor |
 |
Heres an easy to build support to

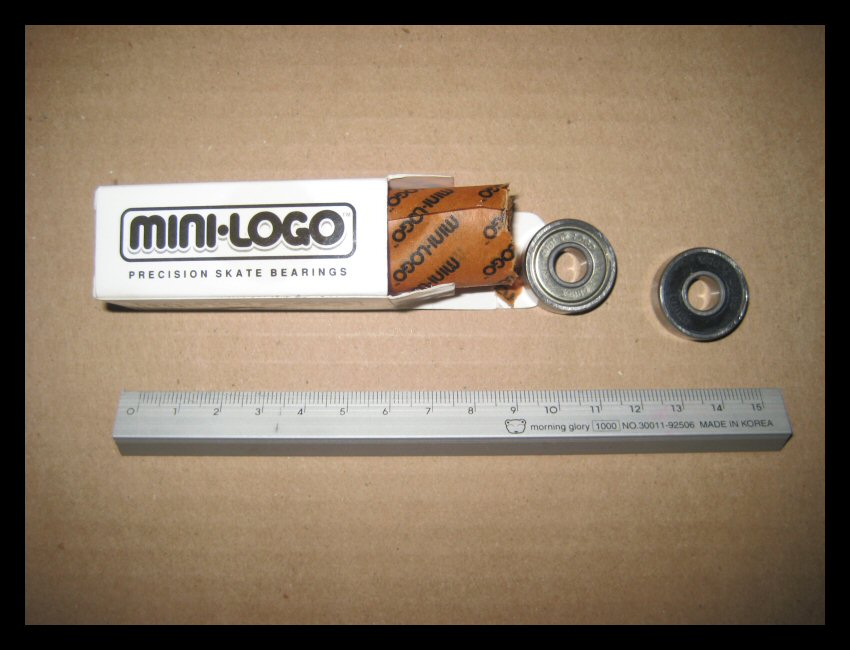

statically balance wheels. Get a set of ball bearings
from a skateboarding shop. These cost under $10 for 8. |
 |

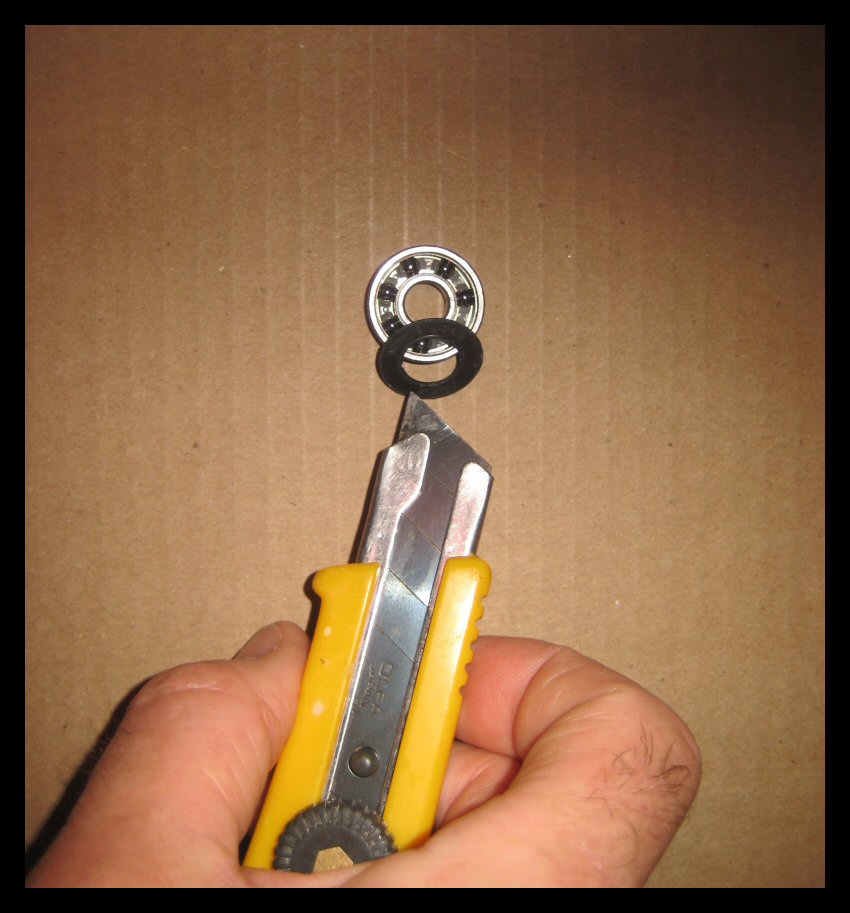

Remove the bearing seal to reduce friction. |
 |
Get a couple of supports from a lumber yard
or home renovation store. Theyre designed to hold

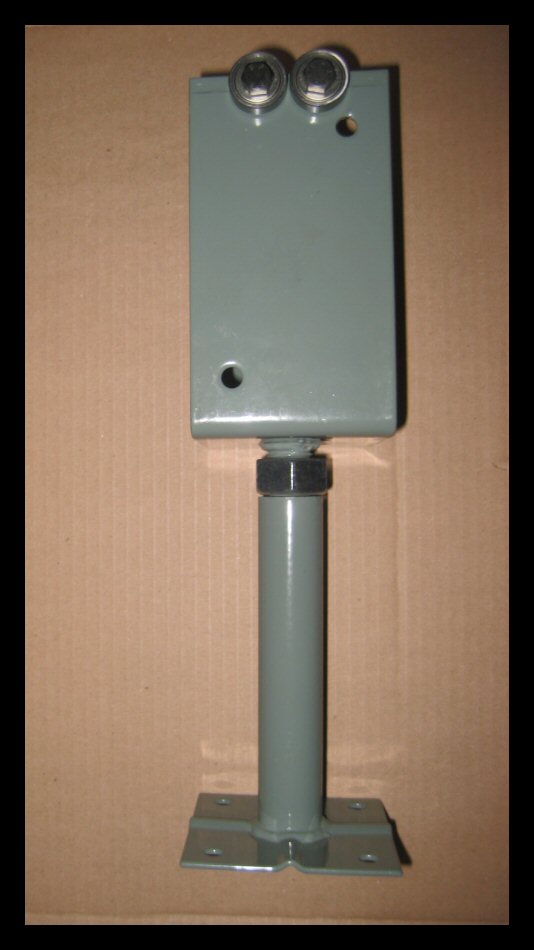

4x4 beams for deck and patio construction. Bolt two
bearings at the top of each support as shown. They should
be almost touching and mounted as close as possible to
the upper edge of the supports. |
 |

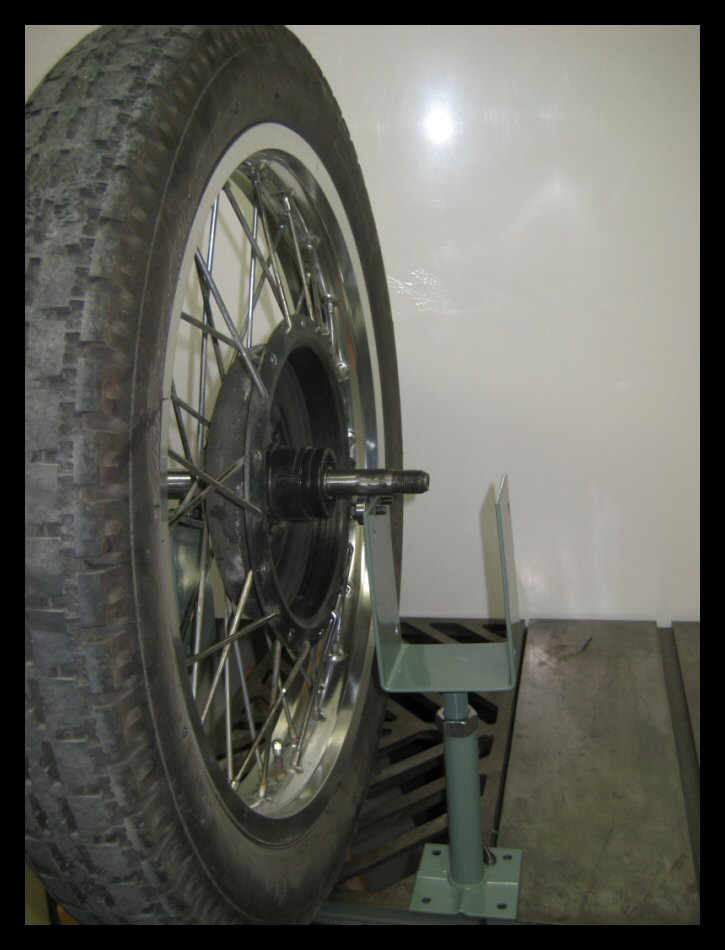

Bolt or clamp the two supports to a suitable
base and youre ready to balance the wheel. This
wheel needed 4 oz to counterbalance the valve stem. |
 |
 |
 |
 |
 |
 |
