CJ750 toolbox |
Drilling out jets Increasing jet size will make a
difference in your bike's performance. It's also
something you'll want to do if you run with straight
pipes, otherwise you may not be able to achieve a
sufficiently rich fuel mixture which leads to higher
temperatures and a possible piston meltdown. (Trust me on
this one.) Stock CJ carbs come with a variety of jet
sizes, and sometimes even pairs of carbs will have
different sized jets! You can buy jets that'll fit your
carbs, but unless you know exactly what to order, it can
be a gamble. (Some 1.02mm jets I found on eBay were $8.75
each.) Hey! Why not just drill out an existing set?
|
 |

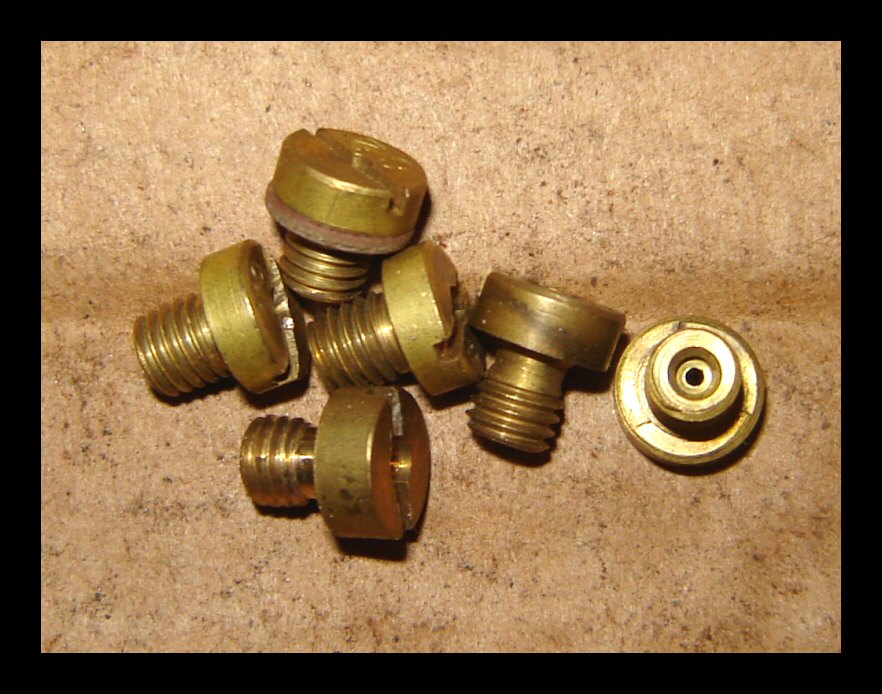

Look at all these jets! I harvested them
from some junk carbs I had laying around. |
 |

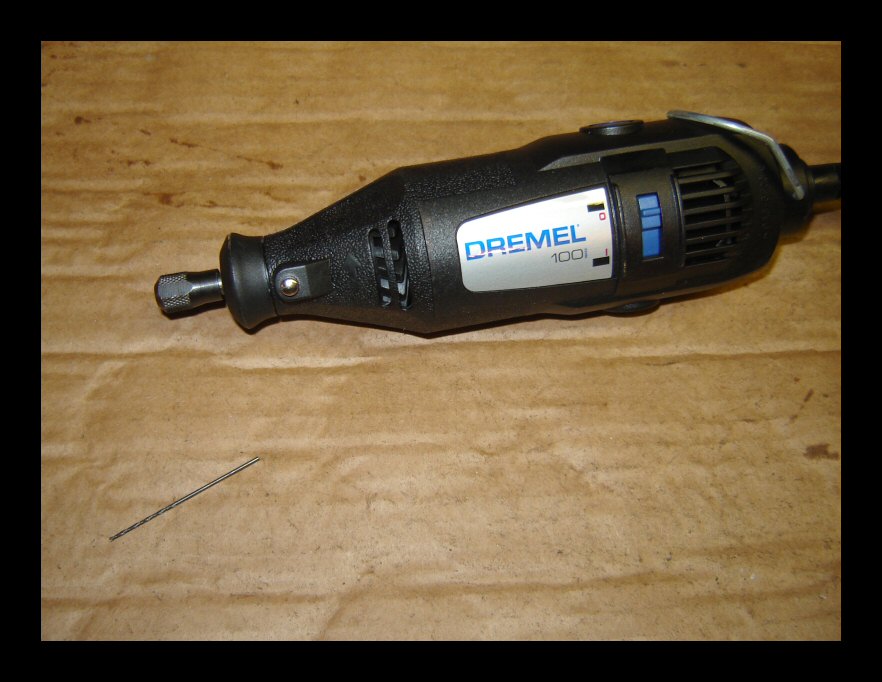

Here's a Dremel tool, something no shop
should be without. |
 |

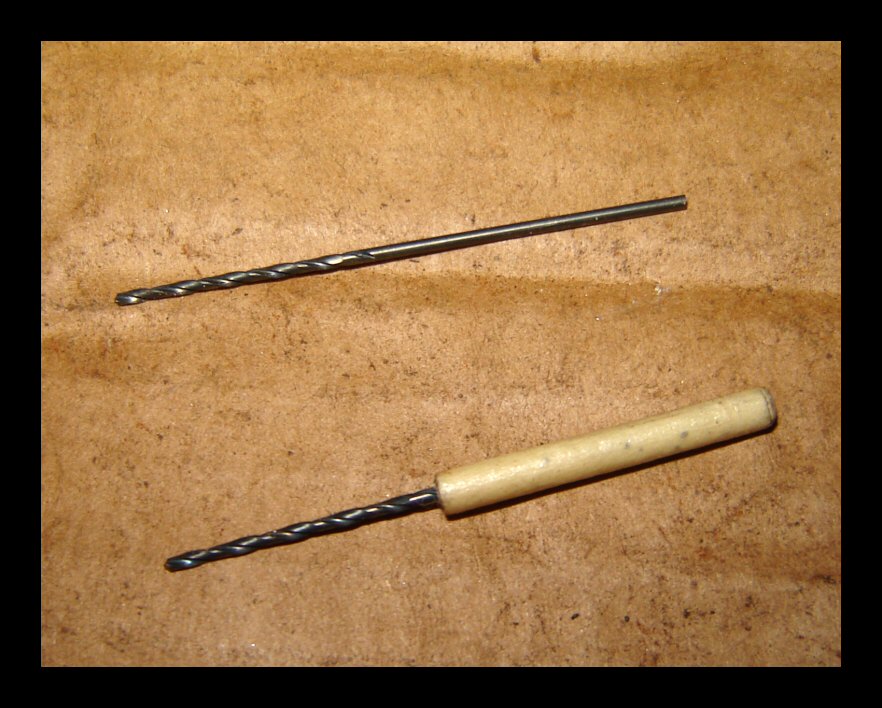

These are #57 bits (1.0922mm.)
Unfortunately, that's too small for the Dremel's chuck so
I wrapped it with masking tape to increase its diameter. |
 |

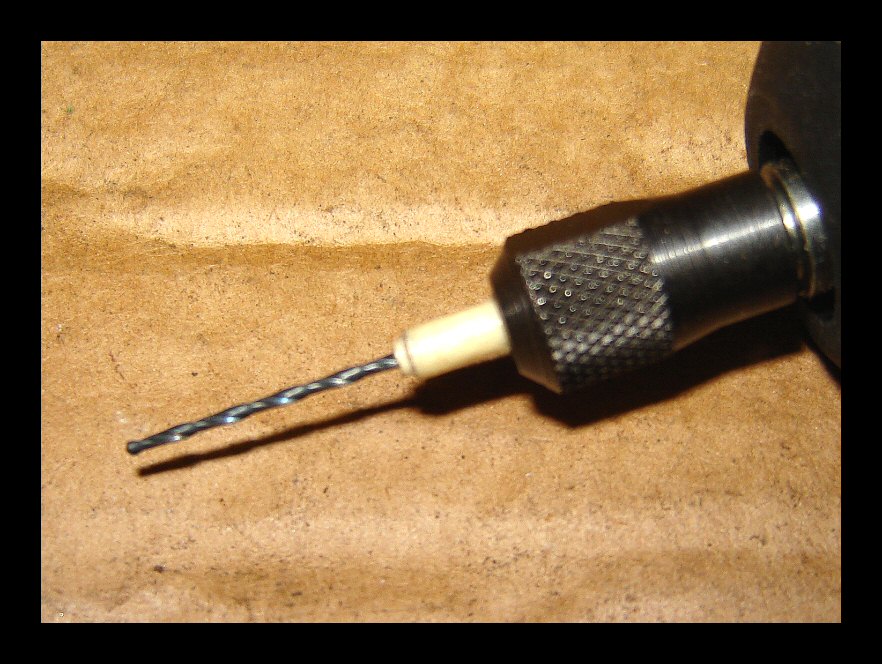

It worked like a charm. |
 |

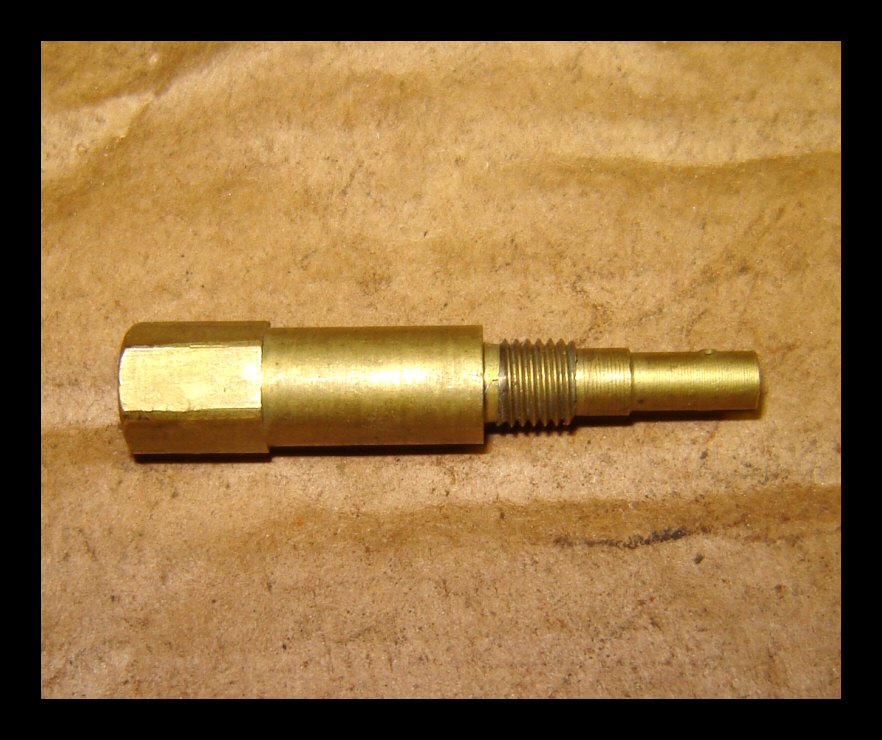

This carb part was used to hold the jet. I
believe it's known as a whatchamajigger. |
 |

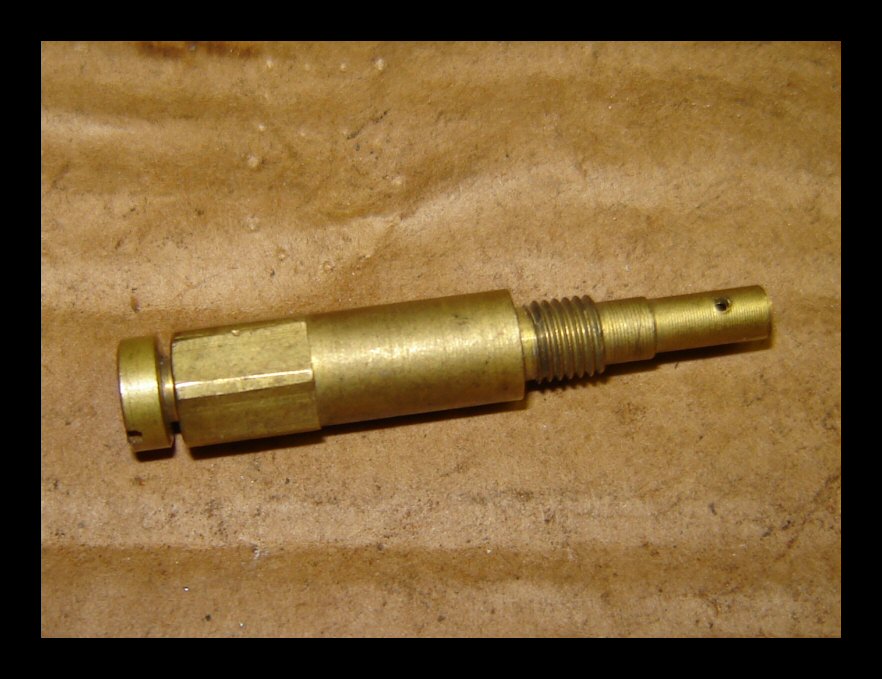

Here it is with a jet screwed in. Note
there's no fiber washer, something you'd definitely not
want to forget when you put your carb back together. |
 |

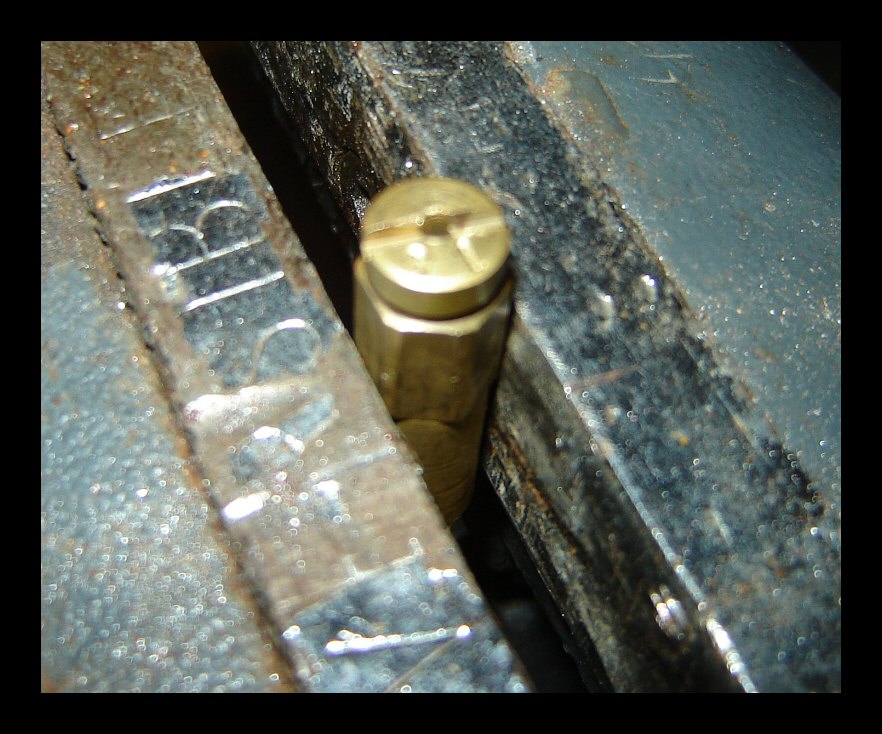

Here's the whole enchilada in my Craftsman
visemade in China! |
 |

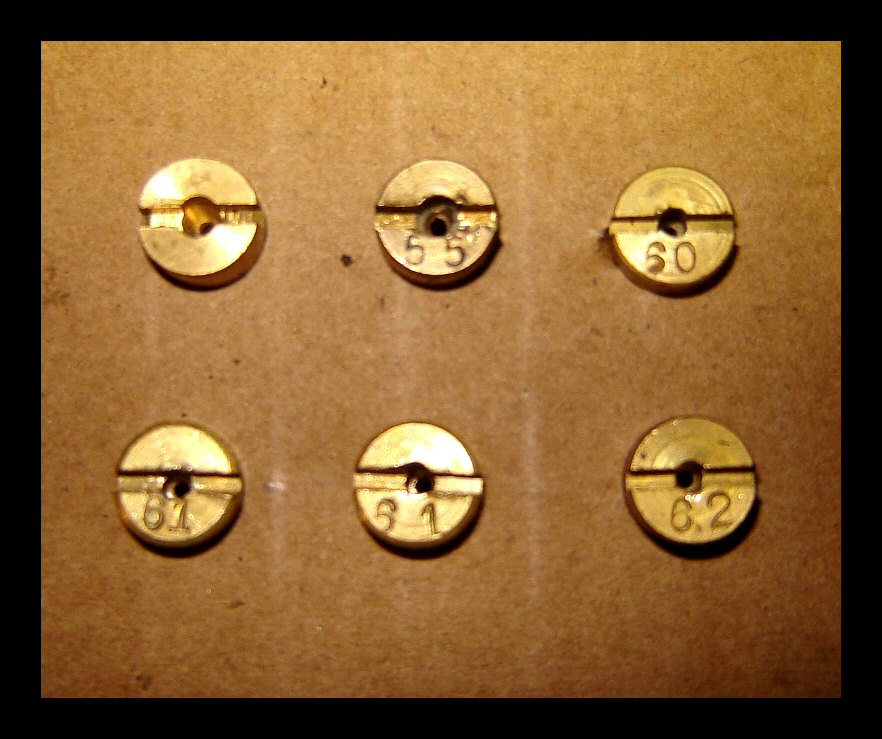

Done. These are all essentially 1.1mm jets
now. I took this picture in order to show you the
different markings on the jets (or, in one case, no
marking at all.) What the heck are they supposed to
mean?! |
I also
wanted to include along these little nuggets from Miin
Leong regarding carburetors and jets: "CJ carbs use
Keihin jets. Sizes are crazy on CJs. Many times I've seen
two sizes on the same bike! IMO, an OHV with 28mm carbs
runs best (sea level to 2000 feet) with 1.0mm jets and
the needles setting #2 from the top. SVs with 28mm carbs0.95 to 0.97 jets."
"With
the Keihin jet, P/N 99101-393-XXX. XXX will be the size
of the jets. Dynojets also make these jets. Almost all
local bike shops can order them for $3-4 each or
sometimes have them in stock. They are very common
jets."
|
 |
 |
 |
 |
 |
 |
