| LED daytime running light headlamp by Miin Leong | |||||
 |
I went to a local electronic parts store to get some wires & heat sink. On the rack I spotted many super bright 1W LEDs. Hmmm. I told the sales guy that I want to put this on a motorcycle as a daytime running light for a 12V system, and he sold me a 24 ohm resistor to match. | ||||

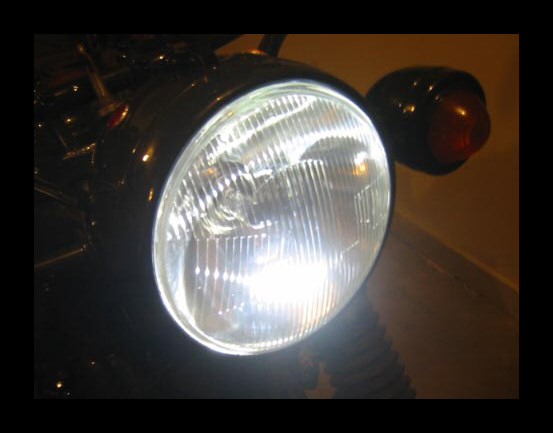

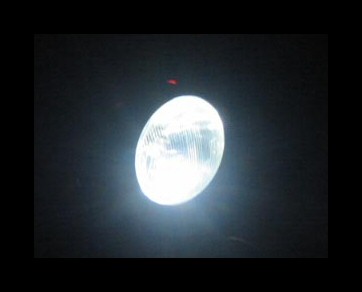

| After all hooked up I was shocked
that it was super bright, almost as bright as my low beam

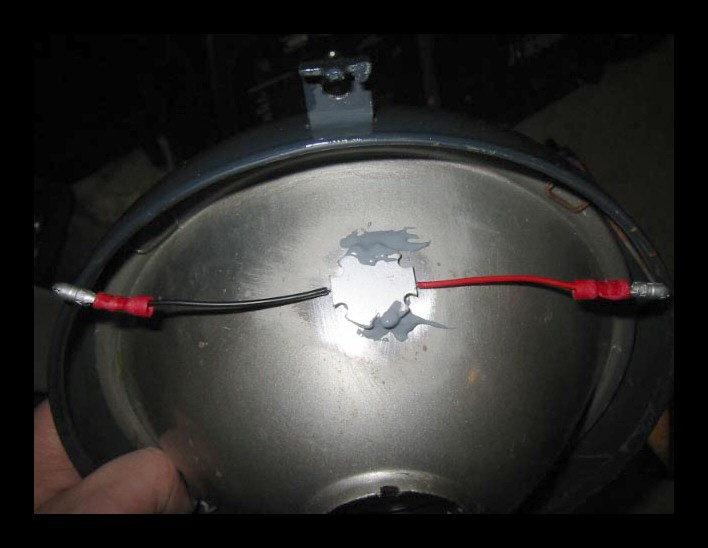

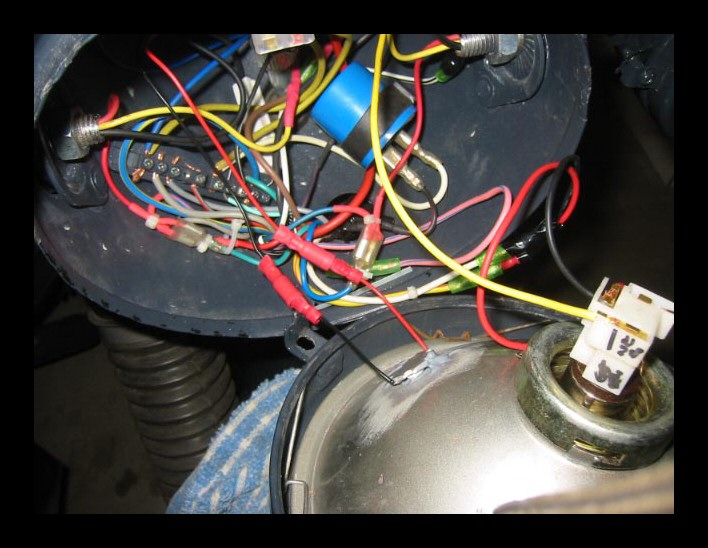

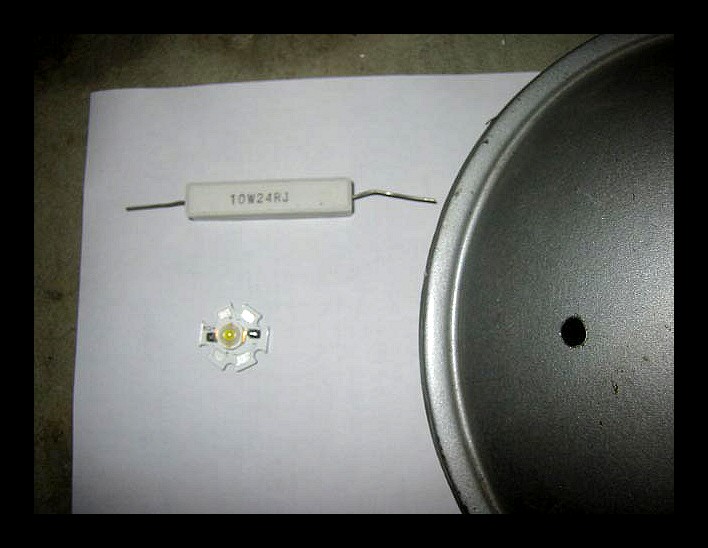

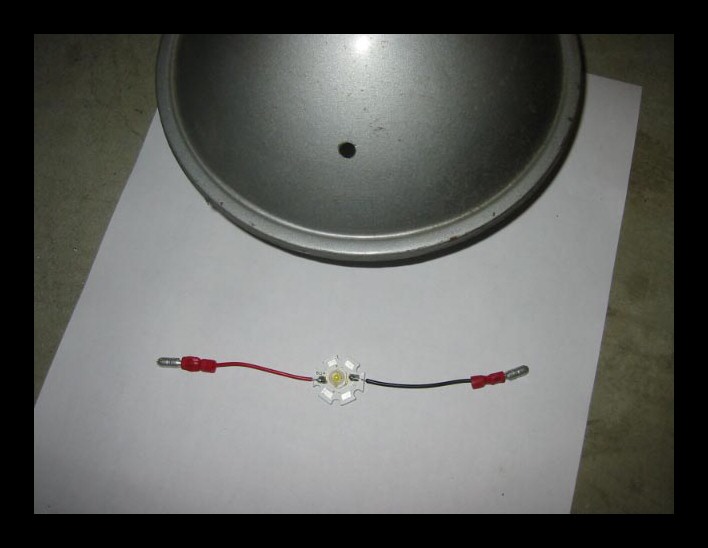

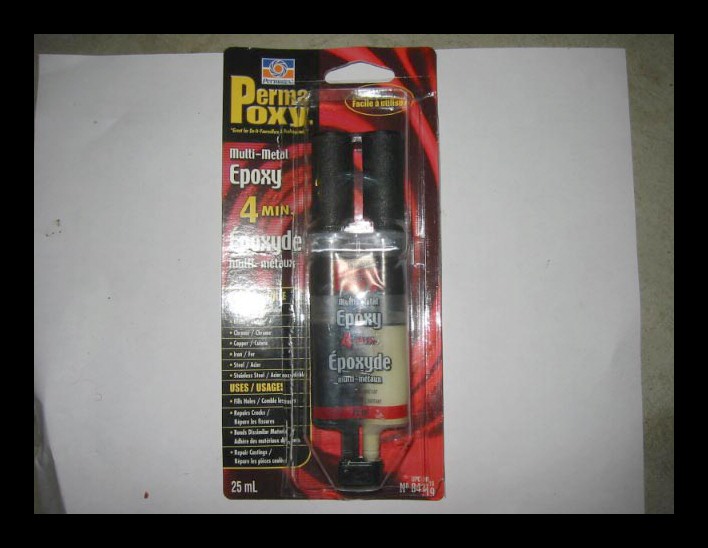

55W headlights. * Test your bike with a voltage tester to make sure your bike is not over charging or it will blow your LED. * For metal back headlights only. Connect one side of the resistor to the power rail inside the headlight bucket , when you turn the key on there is power. On the end of the resistor solder approx 6 inch red wire, heatsink the exposed wire and add a female connector on the other end Black wire approx 6 inch, find ground in headlight bucket and connect. Add a female connector on the other end. On the LED solder approx. 4 inches of wire, red to positive, black to negtive and add male connector to the ends. On the headlight drill a 17/64 or 1/4 inch hole, sand the area to be bonded. Use quick dry bond, about 5-6 minutes to set, wait 4 hours to completely harden and install headlight back on. 1 W LED - they come in many colours. For 12V system use a 22 to 27 Ohm 10W resistor For 6 volts system use 6 Ohm 10W resistor |
|||||
 |
 |
 |
 |
 |
 |
