NAPA voltage regulator by Tony
Salvatore |
 |

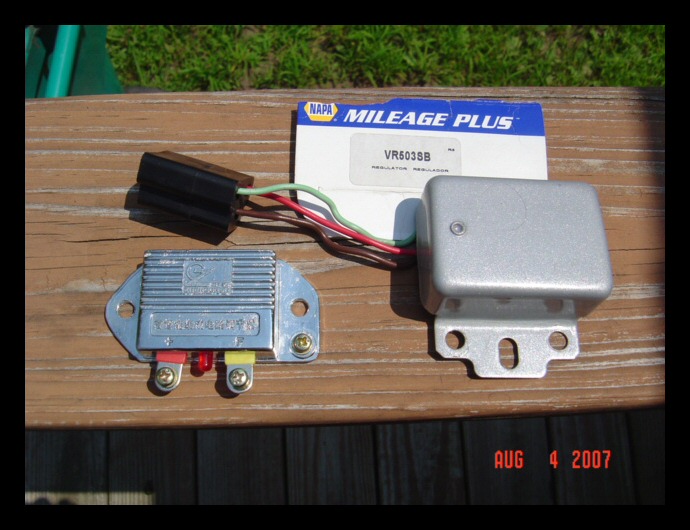

"On a 12V CJ, a NAPA VR503SB voltage
regulator ($29) can be used. It's the equivalent of the
Standard Motor Products VR124. My bike now puts out a
nice 13.7V throughout the rpm range. No more 18+V and

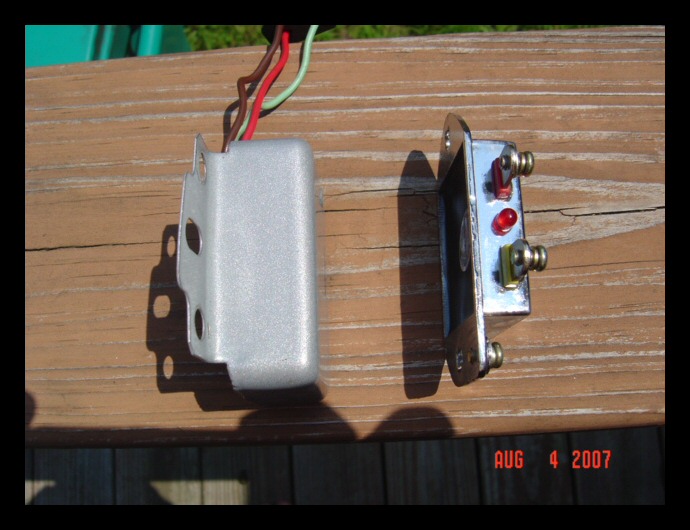

boiling batteries! It's slightly bigger in size than the
stock one but will still fit under the tank with no
problem if thats where yours is mounted." |
 |

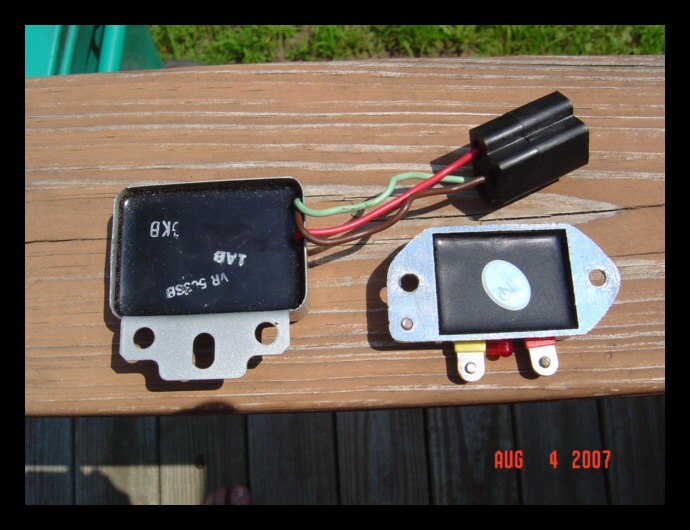

"After cutting off the plug, it's the
same as wiring up the Standard Motor Products unit. On
the VR503SB leads: brown goes to ground, red goes to your
diode (marked + on the stock regulator) and
green goes to the stator. (marked F on the
stock regulator.)" |
 |
 |
 |
 |
 |
 |
