Dave Twomey in Los Angeles |
| "Like many of you, I have been on an
ongoing quest for the perfect saddlebags. Originally I
had used some $12 army surplus bread-bags. Sloppy is a
personal trademark of mine, so for a long time this
worked out fine for both of us." |
 |
"Then one day at an imports store,
inspiration struck as I laid eyes on what appeared to be
brown leather-covered hatboxes. Their tops were round
like my fender and their bottoms were flat like my
exhaust. Turned out they were the vinyl stretched over
lightweight wooden frames. These were going to make
great, rigid saddlebags." |
 |
"But I couldn't stop there. The brown
element was too different from the old grey mare. No, I
would need a full complement of luggage to pull it off.
From ebay, I grabbed a cheap leather tool bag for the
front. This, I kept for exactly one ride as it wanted to
help with the braking. Later, I found a better companion,
a new, german army surplus vinyl map-bag." |
 |

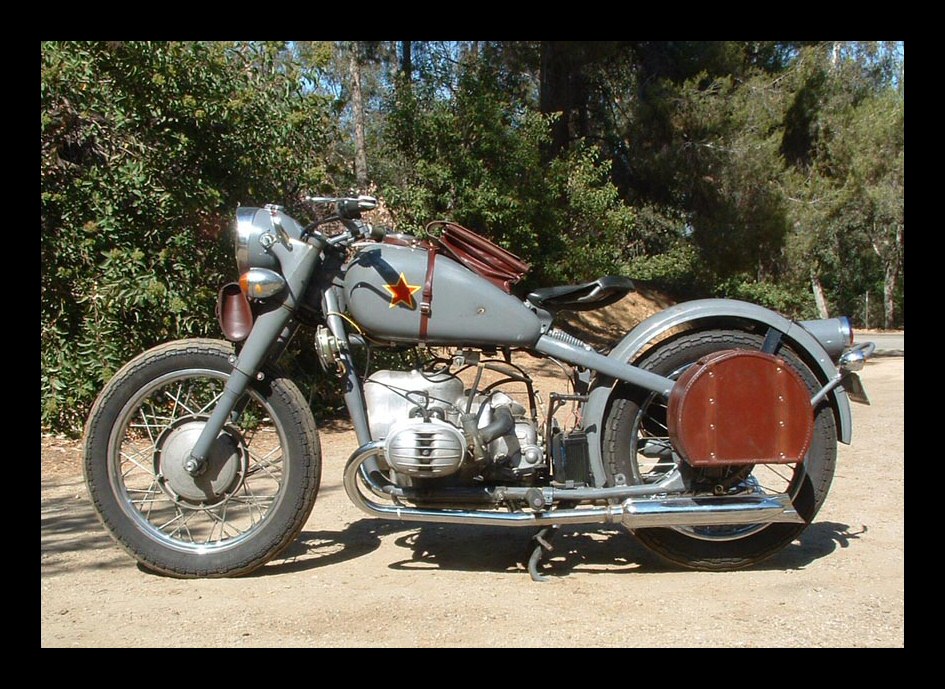

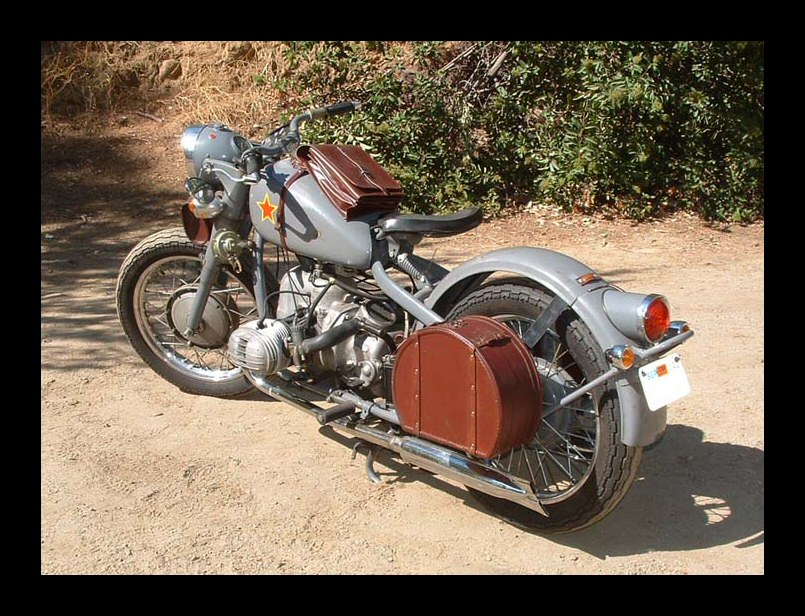

"I removed the front fender and took
off the rear rack to reveal the curve of the rear fender.
I replaced the rear signals with some smaller ones which
helps mimic the ratio of the front trio. I managed to
mount the boxes over the plunger suspension with the aid
of strong-ties, merconium, and the good wishes of little
children. I love the way they echo the lines of the rear
end as well as the bulky projection of the
cylinders." |
 |

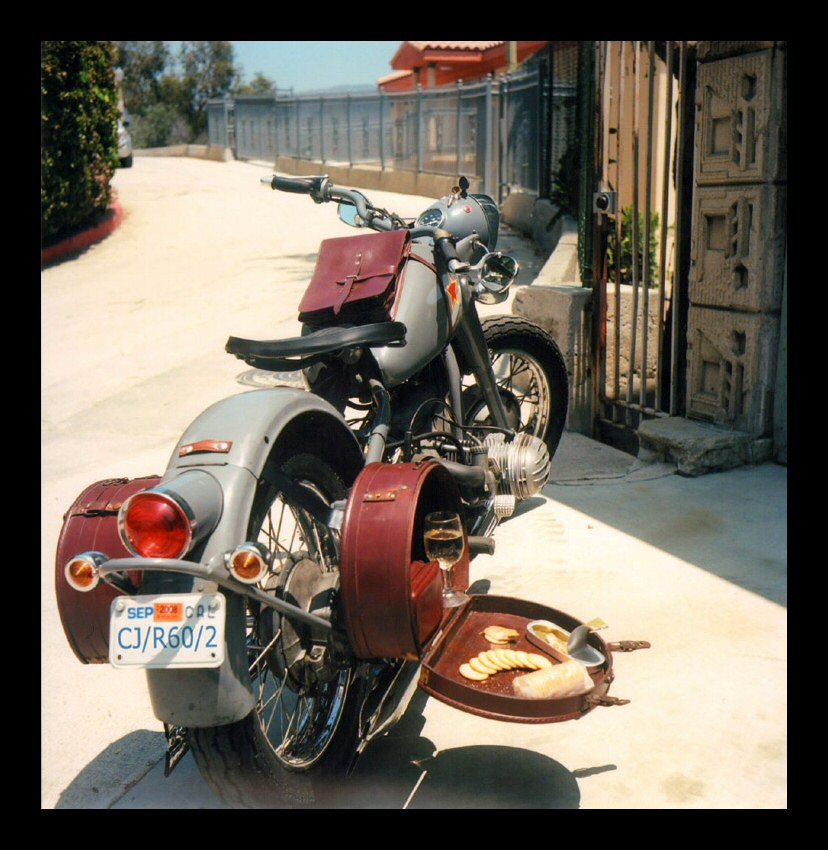

"The bags are easy to load and unload
and each is roomy enough to hold my (matching) tool
clutch and a small picnic (seen here in front of Wright's
Freeman house). Not bad for a coupla $25 hat boxes.
Enduro, eat your heart out." |
 |
|
 |

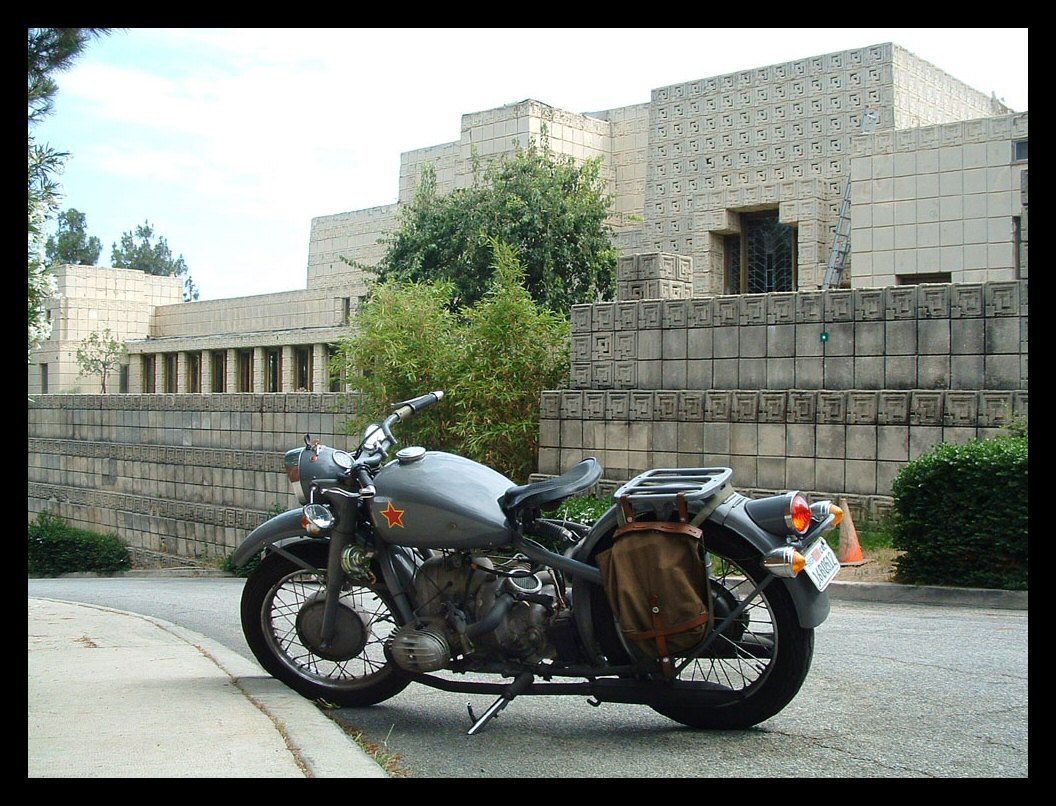

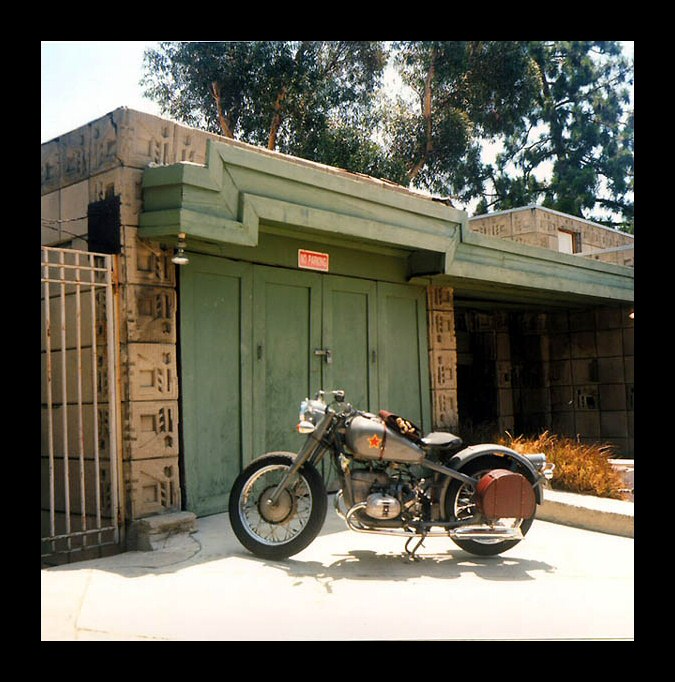

"I've been sitting on these pictures
for you. This one is of the Ennis house, a Frank Lloyd
Wright texture-block house, the interior of which has
starred in several movies, including Blade Runner where
it served as Deckard's apartment." |
 |

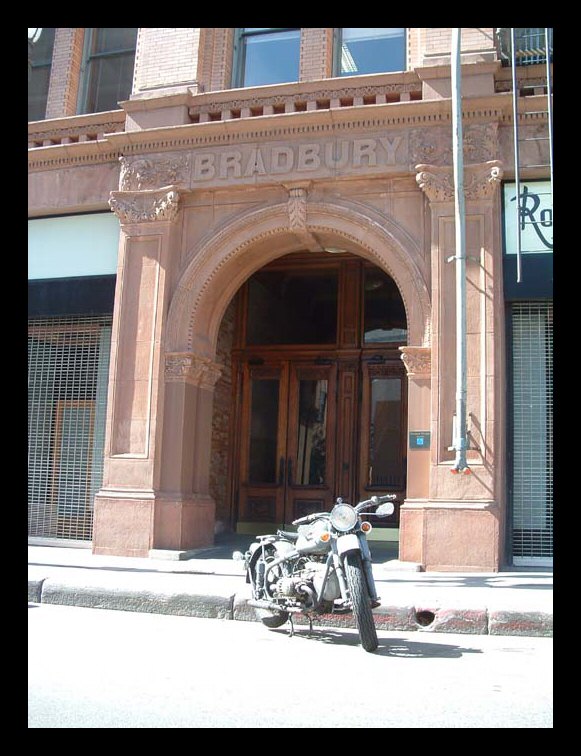

"This picture shows the Bradbury
building in downtown L.A. The wrought-iron staircases and
elevator inside served as a backdrop for the final
showdown with the remaining replicants." |
 |
"The latest improvements are a Honda
petcock and a PLA brake-light switch from Gerald." |
 |
|
 |

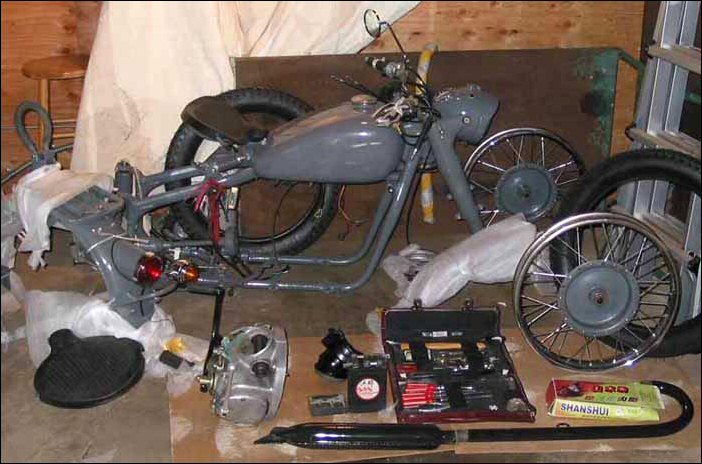

In late 2002 I unwrapped my engineless M1
purchased directly from Dong-Tian. After all the
paperwork and hassle with the freight forwarders, the
pungent smell of rubber and insecticide was sweeter than
perfume. |
 |
After some research I had decided to go with
a BMW /2 powerplant. To secure an engine I went to the
yahoo group Slash 2 Conversions. These guys have /2 bikes
with later engines in them, so I figured they might have
a spare, old engine lying around. I was right. For $100 I
procured a 1960 R60/2 engine which had suffered the
trauma of a violent "jug-ectomy". I tore it
down to the crank and cleaned the slingers and all the
garden waste out of the case, which I put in a baggie. |
 |

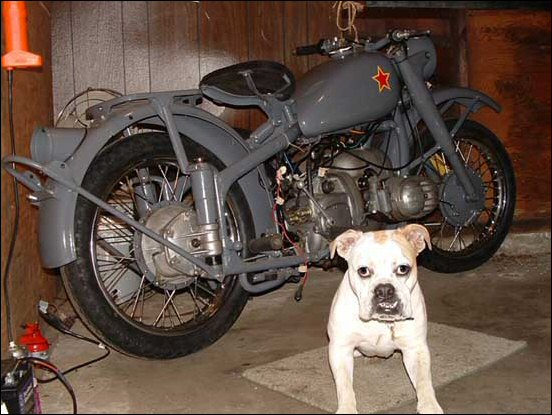

The engine mounts line right up. Now my
machine was starting to look like a bike so I had my
loyal pup guard it around the clock. |
 |

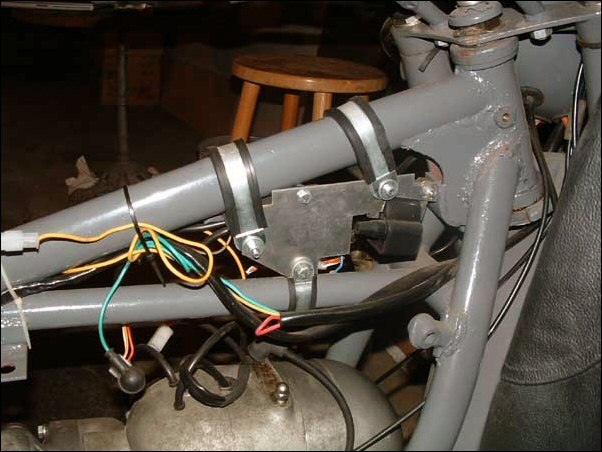

No electronics came with the engine or the
bike so I bought an aftermarket electronic ignition from
MZ-B. The advance and coil are now buried deep in the
frame. |
 |

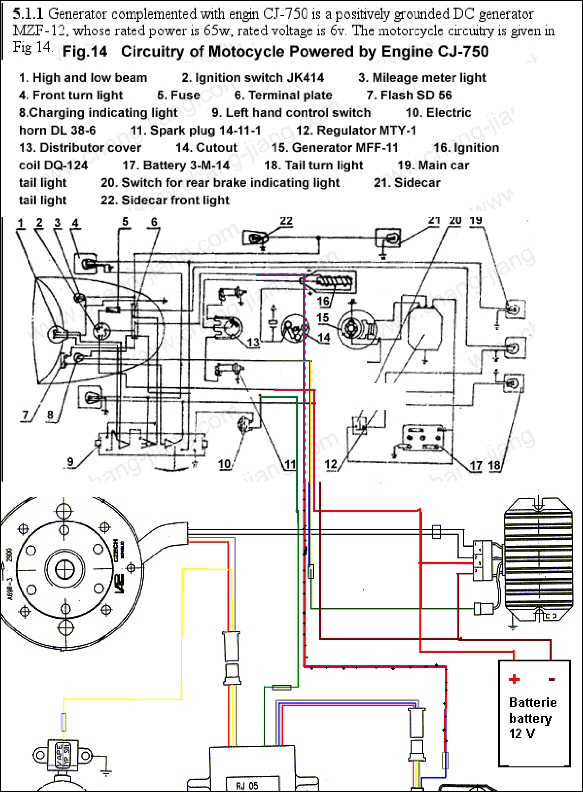

I cobbled together this circuit diagram from
the M1 and MZ-B documents. |
 |

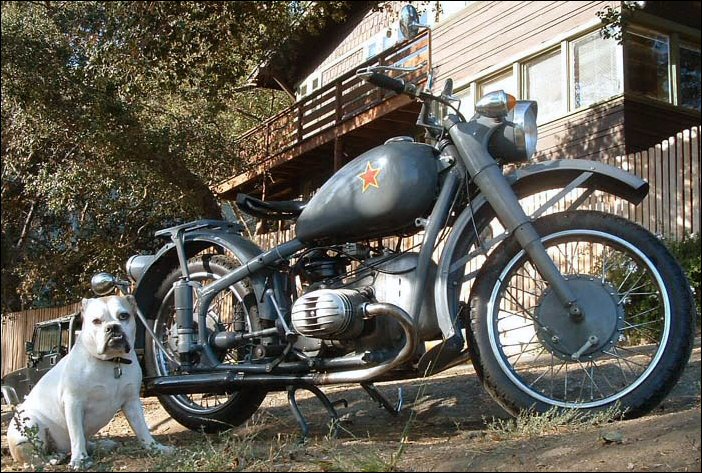

Finally I am on the road. The dog is
commanded to defend the bike with her life. The finned
metal box under the tank is the voltage regulator. The
"Frankenheader" will have to be painted
high-heat black. Also I soon realized the CJ mirror gave
me a great view of my shoulders and not much else. The
front wheel pogos and needs a runway to stop. These
issues will have to be addressed. |
 |

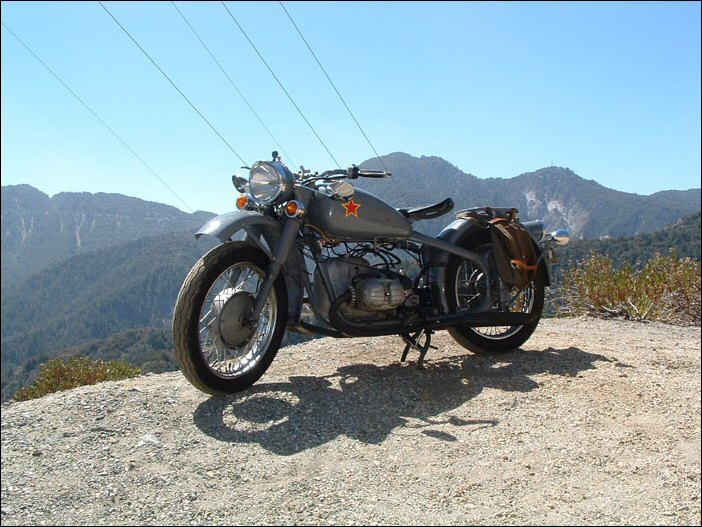

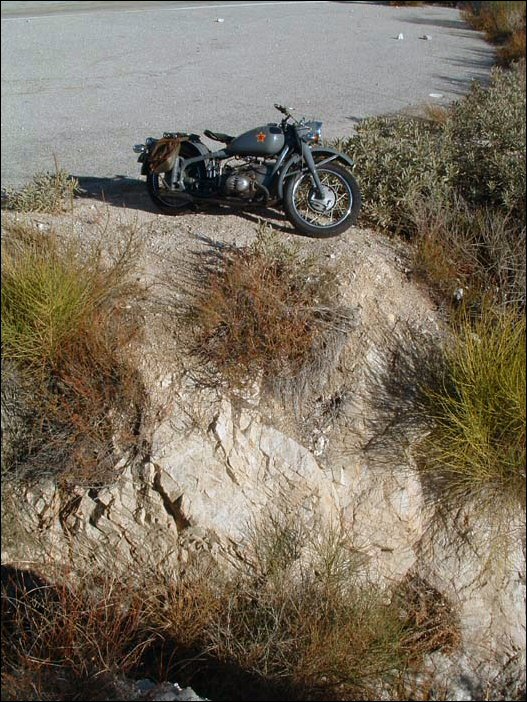

The famous Angeles Crestbest road in
town. I now have BMW mirrors. Front signals are now on
crude brackets attached to the fender bolt. The chimney
air-cleaner is gone in favor of the R71 style part from
Blitz Bikes. |
 |
Also new is the Ural front wheel and from F2, a Ural twin leading shoe front
brake. This is a popular mod. If you want to do it you
should know you will have to hack off at least part of
your fork-lugs and will have to make some kind of shim to
shift the wheel back in line. Jim Bryant
was an indispensable source during the construction of my
bike. |
 |
To tilt the karmic balance back a little I
agreed to design a logo for the Beijing Dragons
Motorcycle Club. This design was my fave but was not
chosen. |
 |
The first draft on a napkin of the official
design. It would eventually be pirated for sidecar
covers
and who knows what else. |
 |

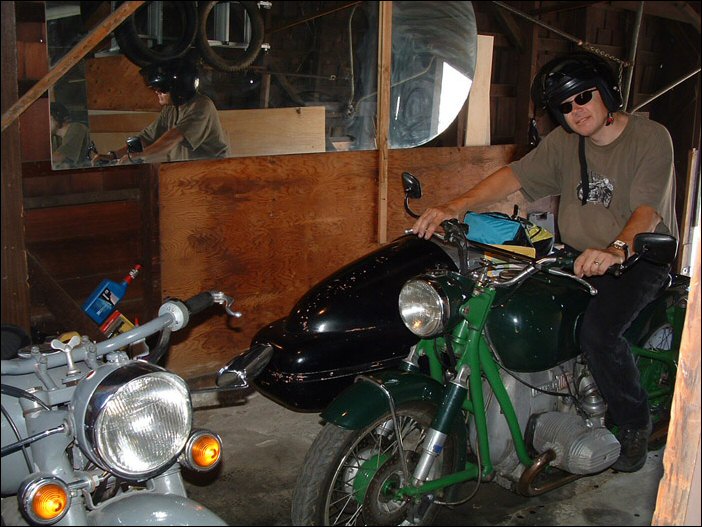

Hey, who's that in my one-horse garage? Why
it's Jim Bryant himself, stopping by on
his US tour to make repairs. |
 |

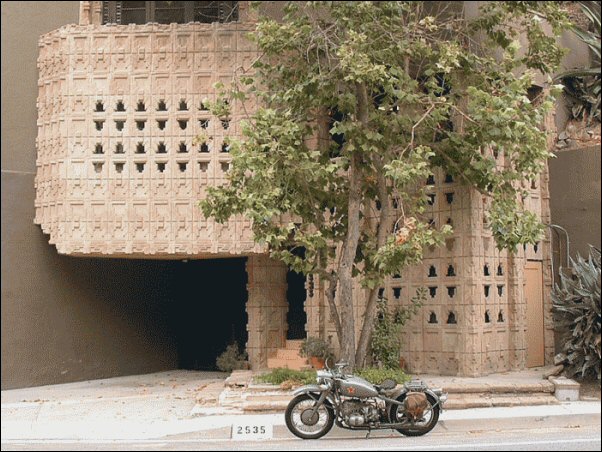

I have decided to take photos of my bike in
front of notable architecture all over LA. Here is Frank
Lloyd Wright's Derby house. |
 |

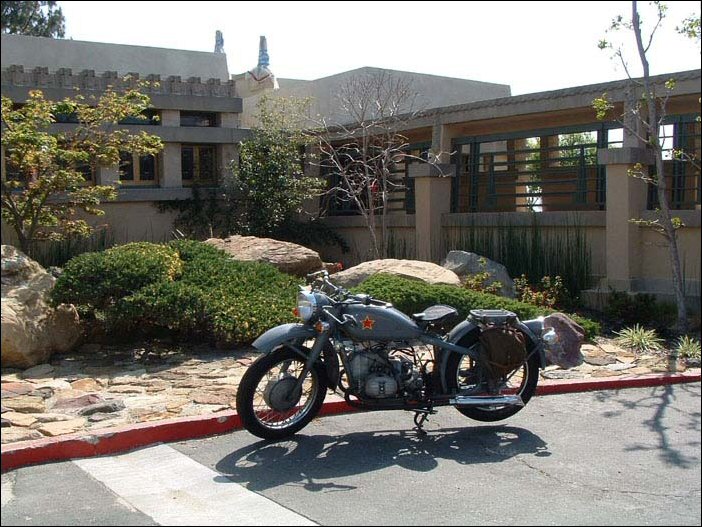

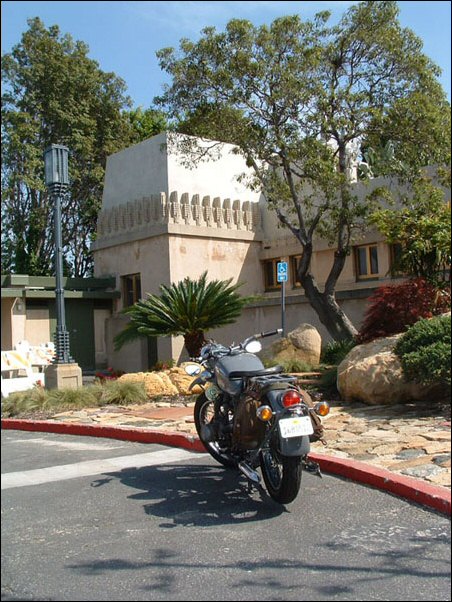

Here she is at Wright's Barnsdall... |
 |
...or "Hollyhock" house. |
 |

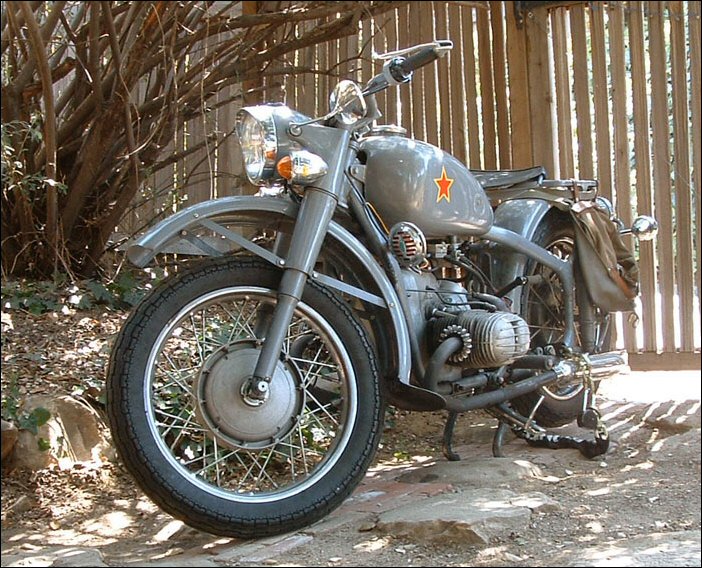

This is the ride in her prettiest
incarnation. Check out the chrome mufflers and awesome
horn supplied by Gerald of LRM. Dog is off duty so the bike is
gated and chained. |
 |
A kid arrives on the planet and catches me
without a sidecar. No problem. A few bunjees and a car
seat and we are ready to go. Later I realized that this
was not safe. I should have put the seat rear facing. |
 |

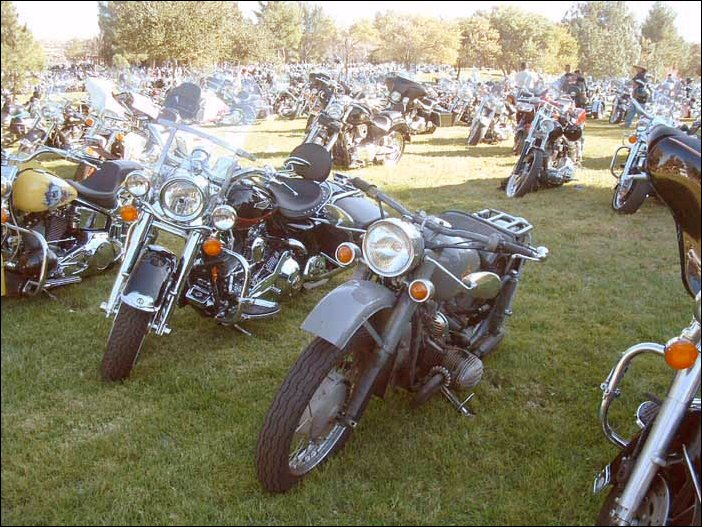

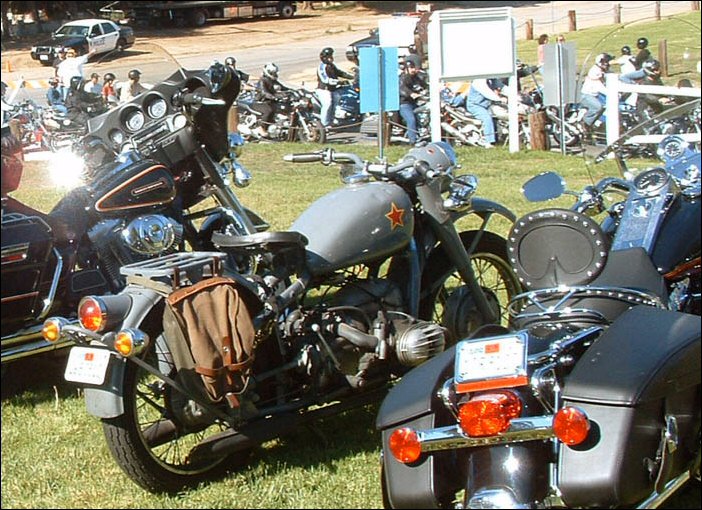

Time to represent at the 22nd. annual Love
Ride to Castaic Lake. We got lots of looks and thumbs up
as usual. |
 |
My guess is that 98.5% of the bikes were
Harleys which is a shame. As you can see you'll find less
chrome in the cart-return at the supermarket. |
 |
 |
 |
 |
 |
 |
